Bovine Metabolome Database: Showing metabocard for Deuteroporphyrin IX (BMDB0000579)

Identification Taxonomy Physical properties Pathways Spectra Concentrations Links References XML

Record Information

Version

1.0

Creation Date

2016-09-30 22:33:06 UTC

Update Date

2020-05-11 20:43:56 UTC

BMDB ID

BMDB0000579

Secondary Accession Numbers

BMDB00579

Metabolite Identification

Common Name

Deuteroporphyrin IX

Description

Deuteroporphyrin IX belongs to the class of organic compounds known as porphyrins. Porphyrins are compounds containing a fundamental skeleton of four pyrrole nuclei united through the alpha-positions by four methine groups to form a macrocyclic structure. Based on a literature review a significant number of articles have been published on Deuteroporphyrin IX.

Structure

MOL SDF PDB SMILES InChI

Synonyms

Value	Source
Deuteroporphyrin	HMDB
Deuteroporphyrin-IX	HMDB
3-[20-(2-Carboxyethyl)-5,10,15,19-tetramethyl-21,22,23,24-tetraazapentacyclo[16.2.1.1³,⁶.1⁸,¹¹.1¹³,¹⁶]tetracosa-1(20),2,4,6(24),7,9,11,13(22),14,16,18-undecaen-4-yl]propanoate	HMDB

Chemical Formula

C₃₀H₃₀N₄O₄

Average Molecular Weight

510.5836

Monoisotopic Molecular Weight

510.226705468

IUPAC Name

3-[20-(2-carboxyethyl)-5,9,14,19-tetramethyl-21,22,23,24-tetraazapentacyclo[16.2.1.1^{3,6}.1^{8,11}.1^{13,16}]tetracosa-1,3,5,7,9,11(23),12,14,16,18(21),19-undecaen-4-yl]propanoic acid

Traditional Name

3-[20-(2-carboxyethyl)-5,9,14,19-tetramethyl-21,22,23,24-tetraazapentacyclo[16.2.1.1^{3,6}.1^{8,11}.1^{13,16}]tetracosa-1,3,5,7,9,11(23),12,14,16,18(21),19-undecaen-4-yl]propanoic acid

CAS Registry Number

448-65-7

SMILES

CC1=C/C2=C/C3=N/C(=C\C4=C(CCC(O)=O)C(C)=C(N4)/C=C4\N=C(C=C4C)\C=C\1/N\2)/C(CCC(O)=O)=C3C

InChI Identifier

InChI=1S/C30H30N4O4/c1-15-9-20-12-25-17(3)21(5-7-29(35)36)27(33-25)14-28-22(6-8-30(37)38)18(4)26(34-28)13-24-16(2)10-19(32-24)11-23(15)31-20/h9-14,31,34H,5-8H2,1-4H3,(H,35,36)(H,37,38)/b19-11-,20-12-,23-11-,24-13-,25-12-,26-13-,27-14-,28-14-

InChI Key

KWKUIRGQJJFUCG-LMKUSPAJSA-N

Chemical Taxonomy

Description

belongs to the class of organic compounds known as porphyrins. Porphyrins are compounds containing a fundamental skeleton of four pyrrole nuclei united through the alpha-positions by four methine groups to form a macrocyclic structure.

Kingdom

Organic compounds

Super Class

Organoheterocyclic compounds

Class

Tetrapyrroles and derivatives

Sub Class

Porphyrins

Direct Parent

Porphyrins

Alternative Parents

Not Available

Substituents

Not Available

Molecular Framework

Not Available

External Descriptors

Not Available

Ontology

Status

Expected but not Quantified

Origin

Endogenous

Biofunction

Not Available

Application

Not Available

Cellular locations

Cell membrane
Cytoplasm
Membrane

Physical Properties

State

Solid

Experimental Properties

Property	Value	Reference
Melting Point	Not Available	Not Available
Boiling Point	Not Available	Not Available
Water Solubility	Not Available	Not Available
LogP	Not Available	Not Available

Predicted Properties

Property	Value	Source
logP	3.55	ALOGPS
logP	5.04	ChemAxon
logS	-4.3	ALOGPS
pKa (Strongest Acidic)	3.78	ChemAxon
pKa (Strongest Basic)	5.13	ChemAxon
Physiological Charge	-2	ChemAxon
Hydrogen Acceptor Count	6	ChemAxon
Hydrogen Donor Count	4	ChemAxon
Polar Surface Area	131.96 Å²	ChemAxon
Rotatable Bond Count	6	ChemAxon
Refractivity	144.44 m³·mol⁻¹	ChemAxon
Polarizability	58.99 Å³	ChemAxon
Number of Rings	5	ChemAxon
Bioavailability	Yes	ChemAxon
Rule of Five	Yes	ChemAxon
Ghose Filter	Yes	ChemAxon
Veber's Rule	Yes	ChemAxon
MDDR-like Rule	Yes	ChemAxon

Spectra

Spectrum Type	Description	Splash Key
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (Non-derivatized) - 70eV, Positive	splash10-0f6x-1000900000-15951e538043265399fd	View in MoNA
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (2 TMS) - 70eV, Positive	splash10-00dr-9000042000-2e895757cfdc0e825c15	View in MoNA
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_1_1) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_1_2) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_1_3) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_1_4) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_2_1) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_2_2) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_2_3) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_2_4) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_2_5) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TMS_2_6) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_1_1) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_1_2) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_1_3) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_1_4) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_2_1) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_2_2) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_2_3) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_2_4) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_2_5) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted GC-MS	Predicted GC-MS Spectrum - GC-MS (TBDMS_2_6) - 70eV, Positive	Not Available	View in JSpectraViewer
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 10V, Positive	splash10-0006-0000910000-f5c44644fab1645d66f9	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 20V, Positive	splash10-014l-0000900000-136b41a450da97bcb044	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 40V, Positive	splash10-0a4i-2004900000-95ebfc8b06d0954336d3	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 10V, Negative	splash10-0a4i-0000790000-28a26fd2cee9c5f5bce2	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 20V, Negative	splash10-05mo-1000920000-40c562bc10ec54dd93ee	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 40V, Negative	splash10-0a4l-9000400000-ff5b245c3124eac15479	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 10V, Positive	splash10-01ox-0000940000-9c5d75f11faaf2cfb824	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 20V, Positive	splash10-02tc-0000910000-428f4d355cd73ae14f5c	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 40V, Positive	splash10-0ldl-1002900000-988c757c29363d75efad	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 10V, Negative	splash10-0a4i-0000490000-c0cc83047c1ea74df080	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 20V, Negative	splash10-0aos-0000930000-4676f92ea6a756fa34a2	View in MoNA
Predicted LC-MS/MS	Predicted LC-MS/MS Spectrum - 40V, Negative	splash10-014i-0001900000-41b81f68c2b9448b0e25	View in MoNA

Biological Properties

Cellular Locations

Cell membrane
Cytoplasm
Membrane

Biospecimen Locations

Platelet

Pathways

Not Available

Name	SMPDB/Pathwhiz	KEGG

Normal Concentrations

Biospecimen	Status	Value	Age	Sex	Condition	Reference	Details
Platelet	Expected but not Quantified	Not Quantified	Not Specified	Not Specified	Normal	Not Applicable	details

Abnormal Concentrations

Not Available

External Links

HMDB ID

HMDB0000579

DrugBank ID

Not Available

Phenol Explorer Compound ID

Not Available

FooDB ID

FDB022126

KNApSAcK ID

Not Available

Chemspider ID

16736707

KEGG Compound ID

Not Available

BioCyc ID

Not Available

BiGG ID

Not Available

Wikipedia Link

Not Available

METLIN ID

5561

PubChem Compound

Not Available

PDB ID

Not Available

ChEBI ID

Not Available

References

Synthesis Reference

Borovkov, V. V.; Filippovich, E. I.; Evstigneeva, R. P. Synthesis and spectral investigation of deuteroporphyrin IX-based porphyrinquinone derivatives. Khimiya Geterotsiklicheskikh Soedinenii (1988), (5), 608-16.

Material Safety Data Sheet (MSDS)

Not Available

General References

Not Available

Showing metabocard for Deuteroporphyrin IX (BMDB0000579)

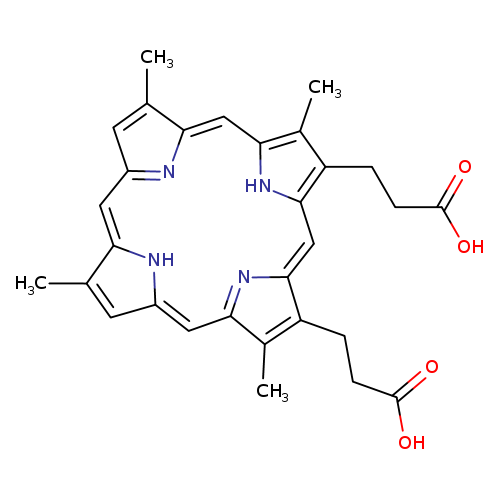

Structure for BMDB0000579 (Deuteroporphyrin IX)
